I. What are the core parameters of 0/1-10V dimmable LED power supplies?
1. What are 0-10V dimming, 1-10V dimming, and 10V PWM dimming?
0-10V, 1-10V, and 10V PWM dimming are all common LED technologies. The core differences lie in the signal type, control logic, and functional characteristics, each with its own specific application scenarios, as detailed below.
0-10V is analog dimming, controlling brightness through a 0-10V DC voltage. 10V is full brightness, and 0V is off. Its advantages include a simple structure, reasonable cost, and support for stepless dimming;
1-10V is a derivative of 0-10V, with a voltage range of 1-10V. It does not have a native off function and requires an additional switch. Compatibility is partially interchangeable, but cross-use is limited.
10V PWM is digital dimming, controlling light through the duty cycle of high-frequency pulses, with 10V as the pulse peak. Its advantages include high dimming accuracy, no color shift, and support for a wide dimming range of 1%-100%.

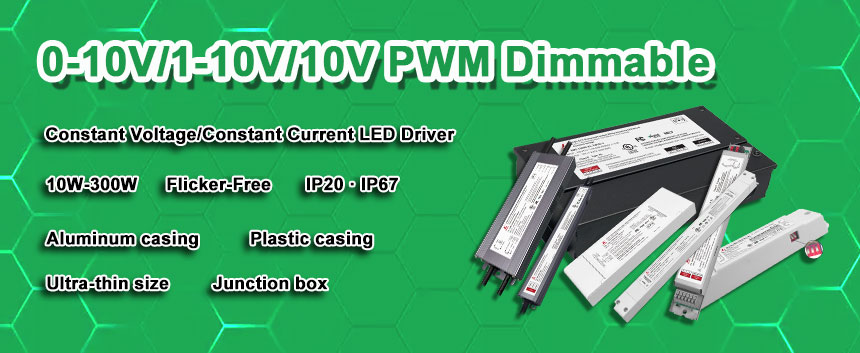

Smartspower's best-selling LED drivers are compatible with all three mainstream methods: 0-10V, 1-10V analog dimming, and 10V PWM dimming. Their core performance parameters meet high-level industry standards.
2. What are the parameter characteristics of 0/1-10V dimmable LED power supplies?
The 0/1-10V three-in-one dimmable power supply has two operating modes: constant voltage and constant current, which can be flexibly switched to adapt to LED load characteristics. The input voltage uses a wide voltage design of AC85-265V, compatible with power grid specifications in different regions worldwide. The rated power covers multiple options from 10W to 300W, fully meeting the diverse application needs of low-power household, conventional commercial, and high-power industrial loads. The power factor (PFC) typical value is ≥0.95, and the energy efficiency level reaches VI, significantly reducing energy consumption and possessing both energy-saving and high-efficiency characteristics; it also possesses mainstream global market access qualifications. The power supply boasts strong adaptability to various working environments, with a temperature tolerance range of -20℃ to 60℃. It has an IP20 protection rating under normal operating conditions, and a customizable IP67 waterproof version is available for outdoor, humid, and other special environments. It effectively ensures long-term stable operation of the light source without flickering or strobing.
II. What are the characteristics of 0/1-10V dimmable LED power supplies? How to connect them correctly?
The wiring of smart dimmable LED power supplies from Smartspower must strictly follow the specifications: First, clearly distinguish between positive and negative polarity to avoid wiring errors; second, the distance between signal lines and power cables must be ≥30cm, and shielded cables are recommended for wiring to further enhance anti-interference capabilities. Note that when the signal line is not connected, the power supply defaults to 100% full brightness output;
With compliant wiring, long-distance centralized control can be achieved. A 0.75mm² copper wire can transmit signals over 100 meters with a voltage drop of only 1.2V, easily meeting the centralized control needs of large-scale scenarios. The dimming accuracy reaches 256 levels, and the PWM dimming frequency can be adjusted as needed in the 1kHz-20kHz range. It is recommended to set the frequency above 5kHz in critical scenarios to eliminate flickering. There is no flickering in the low brightness range, excellent color consistency, and no color temperature shift, making it suitable for professional scenarios with stringent requirements for lighting efficiency.
III. What are some common problems and how to troubleshoot and solve them?
1. Flickering problem: If the power supply itself is working normally but flickering still occurs, it is often due to a signal voltage conflict between the power supply and the customer's control system (both outputting 10V signals, causing mutual interference). In this case, you need to first identify the type of control system and solve the problem accordingly: For current-sinking control systems (where the system outputs the dimming signal, and the power supply does not need to actively output voltage), the power supply signal line can be switched to a no-voltage output mode to eliminate signal conflict; for current-sourcing control systems (where the power supply outputs a 10V signal for the system to work, and the system itself has no voltage output), no additional adjustments are needed, and stable dimming can be achieved under normal operating conditions, except that the lights cannot be completely turned off at 0V signal. If the customer explicitly requests that the light fixture be completely turned off at 0V, and their control system actively outputs a 10V signal, switching the power signal line to a no-voltage output mode will completely solve this problem.
2. Abnormal shutdown problem: If the light fixture cannot be completely turned off at a 0V signal, the core reason is that the controller's minimum output voltage is higher than the power supply's turn-on threshold (the typical threshold is 0.5V), resulting in a weak output from the power supply. There are two possible solutions: one is to replace the controller with a low-threshold controller that has a minimum output voltage below 0.5V, matching the power supply's turn-on standard; the other is to install a relay to forcibly cut off the AC input circuit, achieving complete shutdown of the light fixture.

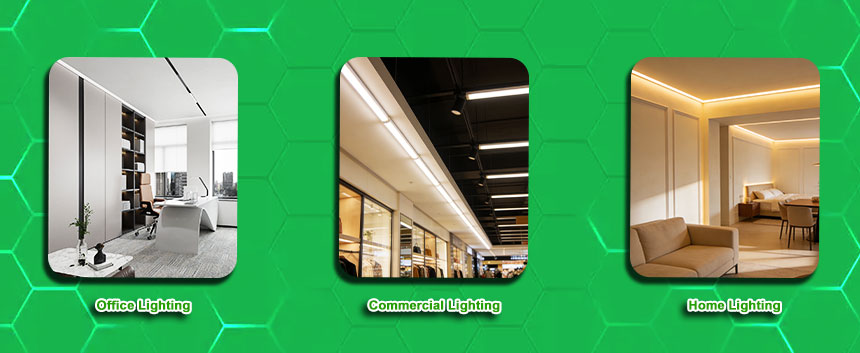

IV. What are the application scenarios for 0/1-10V dimmable LED power supplies?
1. Commercial Lighting Scenarios
Commercial lighting is the core application scenario for this 0-10V dimmable LED power supply, precisely matching the dimming needs of different commercial spaces.
In large shopping malls and centers, its multi-mode compatibility allows for precise brightness control of display windows and showcases through 0-10V stepless dimming, highlighting product quality and display effects; public corridors and rest areas can switch to 1-10V mode to prevent accidental light tắt due to misoperation, ensuring continuous lighting and compatibility with multiple brands of dimmers, adapting to different equipment configurations in different areas.
In chain supermarkets and convenience stores, graded brightness control is needed for fresh food areas, snack shelves, and daily necessities areas. The power supply's high PFC (≥0.95) design effectively reduces long-term energy consumption and ensures flicker-free operation around the clock, enhancing the shopping experience.
In office buildings and business parks, meeting rooms can utilize scene-based programming and brightness memory functions to quickly switch between different lighting states for meetings, presentations, and breaks; open office areas protect employees' eyesight and reduce visual fatigue through flicker-free dimming, and its multi-circuit wiring and long-distance transmission capabilities perfectly meet the centralized control needs of multi-story, large-area office spaces.
2. intelligent Home and Hotel Lighting
Smart home and hotel lighting scenarios emphasize intelligence, personalization, and user experience. Smartspower's new 0-10V dual-signal dimmable LED power supply is fully adaptable to different levels of needs.
In high-end hotels and guesthouses, scene-based programming can be used to achieve multi-mode lighting switching for guest rooms, including sleeping, reading, entertaining, and washing. It supports linkage with PLC and APP central control systems, providing silent and smooth dimming, and combined with scene memory function, it can provide guests with a customized accommodation experience. In villas and high-end residences, independent zone dimming can be achieved for areas suchs as living rooms, bedrooms, studies, and courtyards. It supports remote APP control, and through customized services and wireless linkage modules, personalized dimming curves can be set according to users' living habits, balancing convenience and comfort.
For mass housing projects such as apartment buildings and affordable housing, a balance between cost and practicality is required. The multi-mode compatibility of this power supply reduces the cost of dimmer selection, eliminating the need for dedicated equipment for different areas. The standardized single-loop parallel wiring method simplifies the construction process, and the high-reliability design reduces the failure rate of later maintenance, meeting the large-scale application needs of mass projects.
3. Customized Scenario Expansion
Leveraging its flexible customization capabilities, this power supply can break through conventional scenario limitations and adapt to the needs of more specialized fields.
In outdoor landscape lighting scenarios, it is compatible with 0-10V waterproof dimmers, and combined with its long-distance transmission advantages, it can achieve centralized control of garden landscape lights, building outline lights, and outdoor wall washer lights, adapting to the humid and wide temperature range characteristics of outdoor environments.
In stage lighting systems, the PWM dimming frequency can be increased to a high refresh rate of 20kHz, adapting to dynamic dimming requirements without any visible flicker, ensuring smooth stage lighting transitions and highlighting the performance atmosphere. In cold chain lighting scenarios, it can withstand low-temperature environments of -20℃ to 40℃, operating stably without failure, and effectively protecting LED light sources through constant current mode, adapting to the lighting needs of low-temperature scenarios such as cold storage and cold chain logistics warehouses.
With years of technical accumulation and mature R&D capabilities in the dimming module field, SmartsPower, using its 0-10V dimming series LED power supply as a platform, deeply integrates customized solutions with full-scenario adaptability, precisely responding to the lighting needs of various industries, and empowering global users' intelligent lighting projects with reliable products and professional services.
